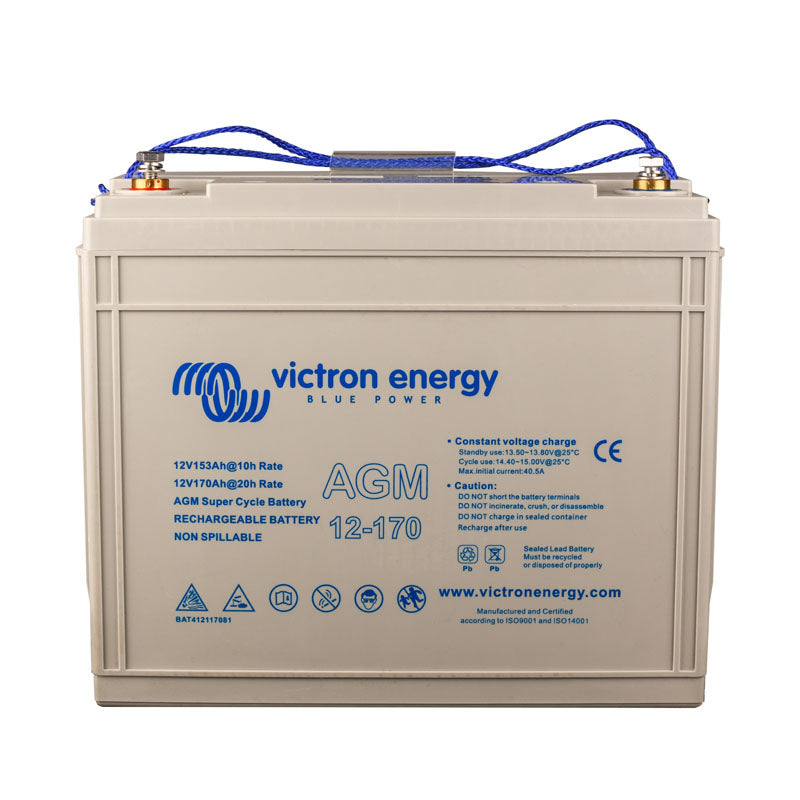

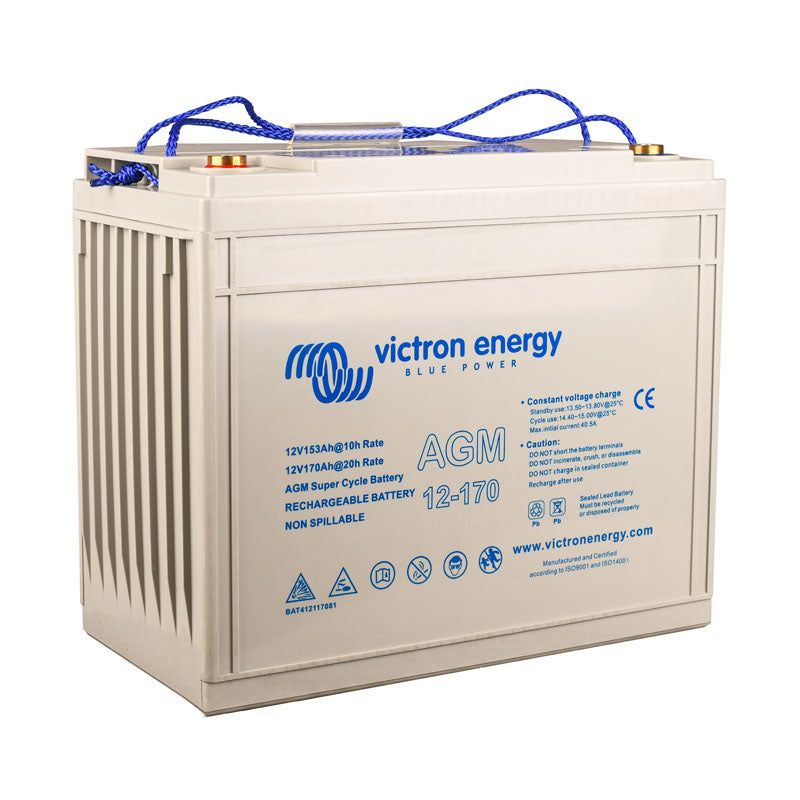

Victron AGM Super Cycle Battery 12V 170Ah

AGM Super Cycle batteries are the result of recent advances in electrochemistry in the field of batteries.

The AGM range has very low internal resistance making them particularly suitable for high current discharge applications such as inverters, drives and winches.

VRLA AGM: lifespan 7-10 years

Characteristics

AGM Super Cycle batteries are the result of recent electrochemical developments in batteries.

The paste on the positive plates is less sensitive to softening, even in the event of repeated 100% discharge of the battery, and new electrolyte additives reduce sulfation in the event of deep discharge.

Tests have shown that the Super Cycle battery can withstand at least three hundred 100% DoD cycles.

The tests consist of a daily discharge to 10.8V with I = 0.2C20, followed by approximately two hours of rest in discharged condition, and then a recharge with I = 0.2C20.

The two hour rest period under discharge condition will damage most batteries within 100 cycles, but not the Super Cycle battery.

We recommend the Super Cycle battery for applications where occasional discharge to 100% DoD, or frequent discharge to 60-80% DoD is expected.

An additional advantage of the new chemistry is a slightly smaller size and lower weight compared to our standard deep cycle AGM batteries.

The internal resistance is also slightly lower than our standard deep cycle AGM batteries.

TECHNICAL CHARACTERISTICS

BrandVictron Energy
Manufacturer Part Number BAT412117081
GTIN8719076040002
Voltage12V
Battery capacity (C20)170Ah
Cold start 600CCA
Terminal Type: M8 insert
Terminal arrangementPositive on the left
Dimensions (including terminals) L336 x W172 x H280mm
Weight45Kg
Warranty2 years
AGM battery technology
Battery ApplicationDual Purpose
